CMB-SP 3-47

$1,859.74 (Incl GST)

incl GST

Suitable for

  • Commercial water pressure boosting
  • Domestic water pressure boosting

Compact booster solution with pressure manager for water supply in domestic and light commercial applications. It can create suction lift of up to 8 m. Wetted parts are in stainless steel (EN 1.4301)

cmb-sp pages

Description

Specifications

Product name CMB-SP 3-47 I-C-A-A-C-A
Product No 98507629
EAN number 5711496304620

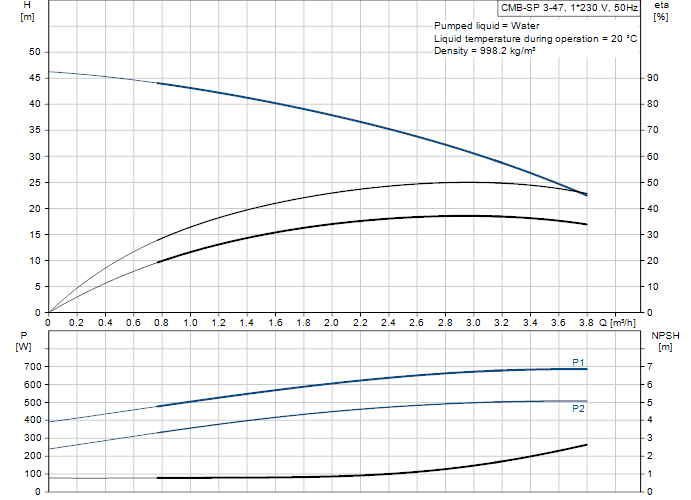

Technical

Pump speed on which pump data are based 2900 rpm
Rated flow 3 m³/h
Rated head 34.9 m
Impellers 5
Primary shaft seal AVBE
Approvals and markings CE,CN ROHS
Curve tolerance ISO9906:2012 3B
Model A
Return valve YES
Self-priming 4 m
Start pressure PM2

Materials

Pump housing Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impeller Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Rubber EPDM

Installation

Maximum ambient temperature 50 °C
Flange standard WHITWORTH THREAD RP

Liquid

Pumped liquid Water
Liquid temperature range 0 .. 60 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³

Electrical data

Rated power – P2 0.5 kW
Mains frequency 50 Hz
Rated voltage 1 x 220-240 V
Maximum current consumption 3.1-2.8 A
p max system 10 bar
Rated speed 2730-2740 rpm
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection TP 211
Type of cable plug AU
Mains cable 1.5 m

Tank

Tank volume NONE l

Others

Net weight 15.8 kg
Gross weight 21 kg



Additional information

Weight 21 kg
