Shop Pumps & Filters

PM 1
PM 1 - Image 2

PM 1

$269.10 (Incl GST)

incl GST

Product number 96848670

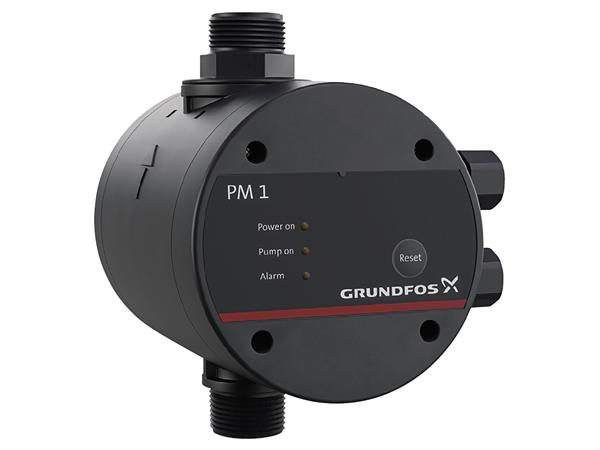

Grundfos pressure managers PM 1 are designed for automatic start/stop control for Grundfos pumps and third-party water supply pumps.

PM pages

Description

PM 1 15

The Grundfos PM 1 15 pressure manager is designed for automatic start/stop control of Grundfos pumps and other water supply pumps. The PM 1 15 is suitable for applications where start/stop of the pump according to consumption is needed. It is the basic control solution offering start at 1.5 bar bar. The PM 1 15 starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow.

The PM 1 15 offers dry-running protection and cycling alarm for increased safety.



CONTROLS:
Dry running protection: YES
LIQUID:
Liquid temperature range: 0 .. 40 °C
TECHNICAL:
Approvals: CE,C-TICK,EAC,WEEE
Return valve: YES
Adjustable start pressure: N
Start pressure: 1.5 bar
Tank volume: 0.1 l
INSTALLATION:
Maximum ambient temperature: 50 °C
Inlet connect: G1″
Outlet connect: G1″
Inlet thread: External
Outlet thread: External
Pres. Read-out: NO
ELECTRICAL DATA:
P1 max.: 1200 W
Mains frequency: 50 / 60 Hz
Suitable for 50/60 Hz: YES
Rated voltage: 1 x 220-240 V
Maximum current consumption: 10 A
Enclosure class (IEC 34-5): IP65
OTHERS:
Net weight: 0.89 kg
Gross weight: 1.65 kg
Shipping volume: 0.01 m³
