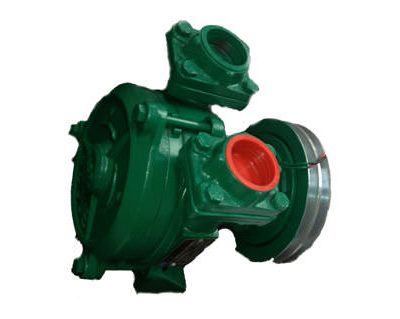

RA32: Bronze Bidirectional Self Priming Pump

Marine: Main & Auxiliary Engine cooling, Deck wash, Ballasting.
Industrial: Transfer, Circulation, Low pressure liquid handling.

We carry a wide range of replacement parts for Azcue products in our stores.

This is a specialised product, please inquire in store for more information or to purchase.



This Side Channel type pump is designed to operate in clean liquids without suspended solids. The inlet and outlet ports are decided by the direction of rotation, hence these
pumps can be reversed for reverse flow. The all Bronze/Stainless (316) construction has excellent resistance to the corrosive effects of Seawater. Special Features are; High
Self-priming capacities at a wide range of rotational speeds. Compact design with extraordinary performance for it size. Minimum and easy maintenance.

Bare Shaft Pump. ( Max continuous rpm 2100 – intermittent 2800).
1.25” (32mm) FBSP Suction & Discharge ports.
Max Flow. 170 lpm @ 6mtr Head @ 2900 rpm, Head Max. 60 mtrs.
Min Flow. 15 lpm @ 15 mtr Head @ 1200 rpm.
Power required – 0.5kw @ 1200 rpm < 6.25kw @ 2900 rpm.
Dimensions: Lg. 199mm, Wd. 155mm, Hgt. 185mm, Wgt. 9kg



Additional information

Weight 9.00 kg
Dimensions 19.9 × 15.5 × 18.5 cm
