SCALA 2

$1,684.34 (Incl GST)

incl GST

Suitable for:

  • Commercial water pressure boosting
  • Domestic ground water intake
  • Domestic water pressure boosting
  • Domestic rainwater harvesting

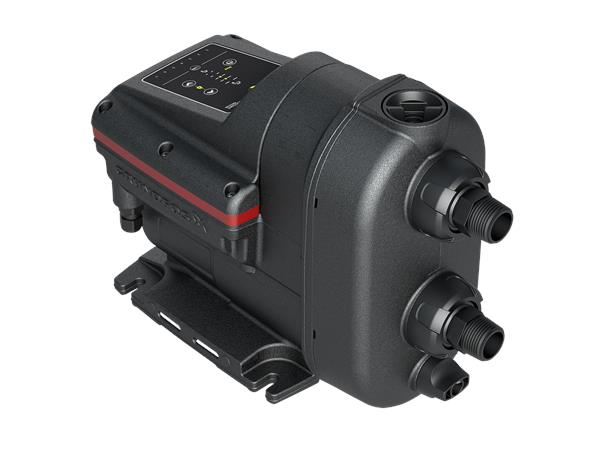

The Grundfos SCALA2 is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications, such as one and two-family houses and apartments. SCALA2 incorporates integrated speed control which allows maintaining a perfect pressure in the taps.

scala 2 pages

Description

Specifications

Product name SCALA2 3-45 A
Product No 98562866
EAN number 5711497234254

Technical

Rated flow 3 m³/h
Rated head 27 m
Maximum head 45 m
Head max 45 m
Primary shaft seal CARBON/CERAMIC
Approvals CE,RCM
Approvals for drinking water AS4020
Curve tolerance ISO9906:2012 3B
Model A

Materials

Pump housing Composite
Pump NORYL FE1630PW PPE+PS-GS30
Impeller Composite
NORYL FE1630PW PPE+PS-GS30
Material code A

Installation

Range of ambient temperature 0 .. 55 °C
Maximum operating pressure 10 bar
Maximum permissible inlet pressure 6 bar
Type of inlet connection R
Type of outlet connection R
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Pressure rating for connection PN 10

Liquid

Pumped liquid Water
Liquid temperature range 0 .. 45 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³

Electrical data

Power input – P1 550 W
Mains frequency 50 / 60 Hz
Rated voltage 1 x 200-240 V
Rated current 2.8 A
Enclosure class (IEC 34-5) IPX4D
Insulation class (IEC 85) F
Length of cable 2 m
Power plug Type I (AS/NZS 3112)
Australian plug

Others

Net weight 8.95 kg
Gross weight 12.2 kg
Shipping volume 0.044 m³
Storage temperature range -40 .. 70 °C



Additional information

Weight 8.95 kg
