Description

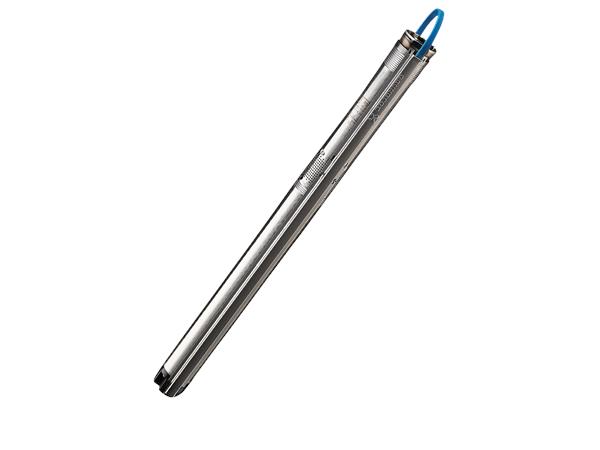

3″ multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has “floating” impellers, each with its own tungsten carbide/ceramic bearing.
The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.
The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.
| LIQUID: |
| Pumped liquid: |
|
Water |
| Maximum liquid temperature: |
|
35 °C |
| Max liquid t at 0.15 m/sec: |
|
35 °C |
| Selected liquid temperature: |
|
20 °C |
| Density: |
|
998.2 kg/m³ |
|
| TECHNICAL: |
| Pump speed on which pump data are based: |
|
10700 rpm |
| Rated flow: |
|
5 m³/h |
| Rated head: |
|
48 m |
| Approvals: |
|
CE,PCBC,RCM,EAC,PSE_JQA,CN RoHS Exempt,Morocco |
| Curve tolerance: |
|
ISO9906:2012 3B |
|
| MATERIALS: |
| Pump: |
|
Polyamide / Stainless steel |
|
|
DIN W.-Nr. 1.4301 |
|
|
AISI 304 |
| Impeller: |
|
Polyamide |
| Motor: |
|
Stainless steel |
|
|
DIN W.-Nr. 1.4301 |
|
|
AISI 304 |
|
| INSTALLATION: |
| Pump outlet: |
|
Rp1 1/2 |
| Minimum borehole diameter: |
|
76 mm |
|
| ELECTRICAL DATA: |
| Motor type: |
|
MSE3 |
| Power input – P1: |
|
2.32 kW |
| Rated power – P2: |
|
1.55 kW |
| Power input P3: |
|
1.22 kW |
| Mains frequency: |
|
50 / 60 Hz |
| Rated voltage: |
|
1 x 200-240 V |
| Rated current: |
|
11.2 A |
| Power factor: |
|
1.00 |
| Rated speed: |
|
10700 rpm |
| Start. method: |
|
direct-on-line |
| Enclosure class (IEC 34-5): |
|
IP68 |
| Insulation class (IEC 85): |
|
F |
| Length of cable: |
|
1.5 m |
| Motor No: |
|
96195291 |
|
| OTHERS: |
| Net weight: |
|
6.8 kg |
| Gross weight: |
|
6.8 kg |
| Shipping volume: |
|
0.01 m³ |
| Product name |
SQE 5-50 |
| Product No |
96160462 |
| EAN number |
5700398871910 |
| Price |
|
Technical
| Pump speed on which pump data are based |
10700 rpm |
| Rated flow |
5 m³/h |
| Rated head |
48 m |
| Stages |
4 |
| Approvals |
CE,PCBC,RCM,EAC,PSE_JQA,CN RoHS Exempt,Morocco |
| Curve tolerance |
ISO9906:2012 3B |
| Pump No |
96080399 |
| Model |
B |
| Valve |
pump with built-in non-return valve |
Materials
| Pump |
Polyamide / Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
| Impeller |
Polyamide |
| Motor |
Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
Installation
| Pump outlet |
Rp1 1/2 |
| Minimum borehole diameter |
76 mm |
Liquid
| Pumped liquid |
Water |
| Maximum liquid temperature |
35 °C |
| Max liquid t at 0.15 m/sec |
35 °C |
| Selected liquid temperature |
20 °C |
| Density |
998.2 kg/m³ |
Electrical data
| Motor type |
MSE3 |
| Power input – P1 |
2.32 kW |
| Rated power – P2 |
1.55 kW |
| Power input P3 |
1.22 kW |
| Mains frequency |
50 / 60 Hz |
| Rated voltage |
1 x 200-240 V |
| Rated current |
11.2 A |
| Power factor |
1.00 |
| Rated speed |
10700 rpm |
| Start. method |
direct-on-line |
| Enclosure class (IEC 34-5) |
IP68 |
| Insulation class (IEC 85) |
F |
| Built-in motor protection |
Y |
| Thermal protec |
internal |
| Length of cable |
1.5 m |
| Motor No |
96195291 |
Controls
| CU 300/CU 301 |
communication with CU 300/CU 301 possible |
Others
| Net weight |
6.8 kg |
| Gross weight |
6.8 kg |
| Shipping volume |
0.01 m³ |
| Sales region |
Japan |
