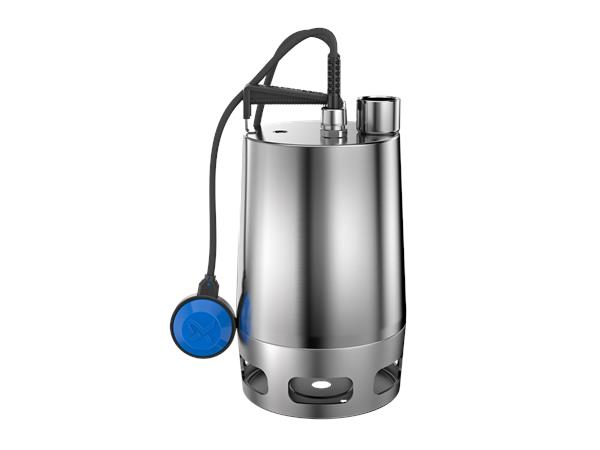

UNILIFT AP35.40.06.A1V

$1,773.78 (Incl GST)

incl GST

Product number: 96023932

Suitable for

  • Commercial wastewater
  • Domestic wastewater

Grundfos UNILIFT AP35 are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 35 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings.

unilift ap 35 50 pages

Description

UNILIFT AP35.40.06.A1V
Submersible drainage pump type

Vertical single-stage stainless steel submersible pump with vertical discharge port and integrated submersible 1-phase totally enclosed motor in insulation class F with thermal overload protection.

The pump is fitted with suction strainer and level switch for automatic start and stop.

The impeller is a V impeller for 35 mm free passage suitable for pumping groundwater, surface water, rain water and similar.

The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.

The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.

The pump is ready for use as it is fitted with carrying handle and is supplied with a 5 m mains cable. The mains cable is of the plug type with glass sealing compound in the socket to prevent penetration of humidity into the stator windings.



LIQUID:
Liquid temperature range: 0 .. 55 °C
Density: 998.2 kg/m³
TECHNICAL:
Type of impeller: V
Maximum particle size: 35 mm
MATERIALS:
Pump housing: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impeller: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Cable union: Brass
CW602N
C35330
INSTALLATION:

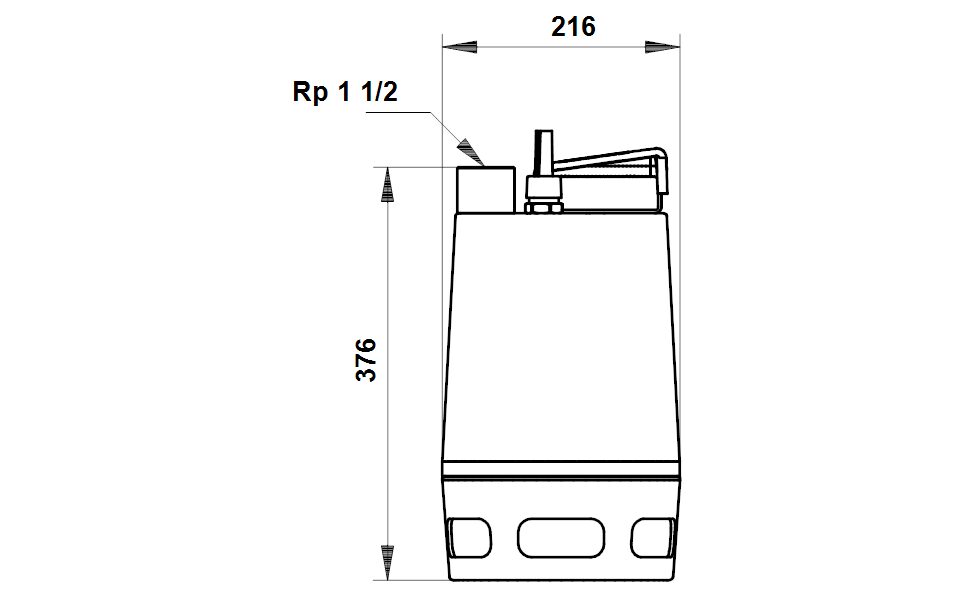

Pump outlet: Rp 1 1/2
Maximum installation depth: 2 m
ELECTRICAL DATA:
Motor type 1-phase: PSC
Power input – P1: 0.9 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Rated current: 4 A
Cos phi – power factor: 0.97
Rated speed: 2810 rpm
Capacitor size – run: 16 µF/400 V
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Length of cable: 5 m
Type of cable plug: SCHUKO
OTHERS:
Net weight: 13.2 kg
Gross weight: 13.9 kg



Additional information

Weight 13.9 kg
