Shop Pumps & Filters

JP 4-47 PM1

$1,069.84 (Incl GST)

incl GST

Suitable for:

  • Domestic ground water intake
  • Domestic water pressure boosting
  • Domestic rainwater harvesting

JP PM are boosters that consist of a pressure manager and a self-priming, single-stage centrifugal pump. Designed for a wide range of garden and domestic applications, including water supply and transfer duties in the home.

JPPM Pages

Description

Specifications

Product name JP 4-47 PM1 A-A-BBVP
Product No 99463899
EAN number 5713829542693

Technical

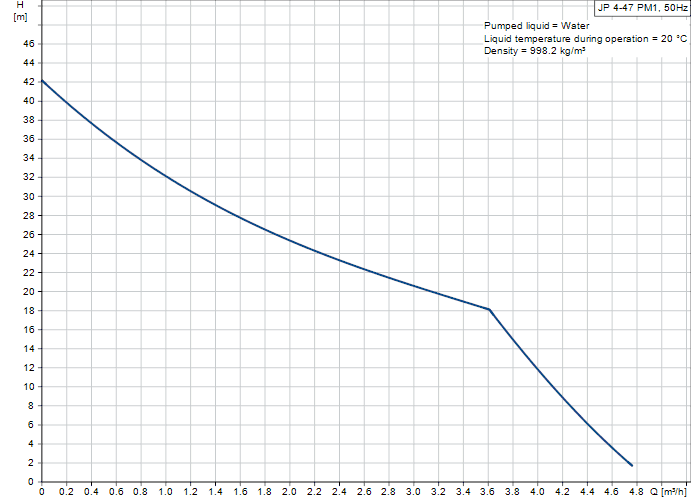

Rated flow 4 m³/h
Rated head 41 m
Primary shaft seal BBVP
Approvals CE,WM,C-TICK
Curve tolerance ISO9906:2012 3B
Pump version A
Adjustable start pressure N
Start pressure 1.5 bar
Rated driver speed 2800 rpm

Materials

Pump housing Stainless steel
EN 1.4301
AISI 304
Impeller Composite
Material code A

Installation

Minimum ambient temperature 0 °C
Maximum ambient temperature 40 °C
Maximum operating pressure PN 6 bar
Pump inlet G 1
Pump outlet G 1

Liquid

Pumped liquid Water
Liquid temperature range 0 .. 40 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³

Electrical data

Power input – P1 850 W
Mains frequency 50 Hz
Rated voltage 1 x 230 V
Rated current 3.8 A
Starting current 11.3 A
Capacitor size – run 13 µF/450 V
Enclosure class (IEC 34-5) IP44
Insulation class (IEC 85) F
Length of cable 1.5 m
Type of cable plug AUS

Others

Net weight 9 kg
Gross weight 12 kg



Additional information

Weight 12 kg
