Description

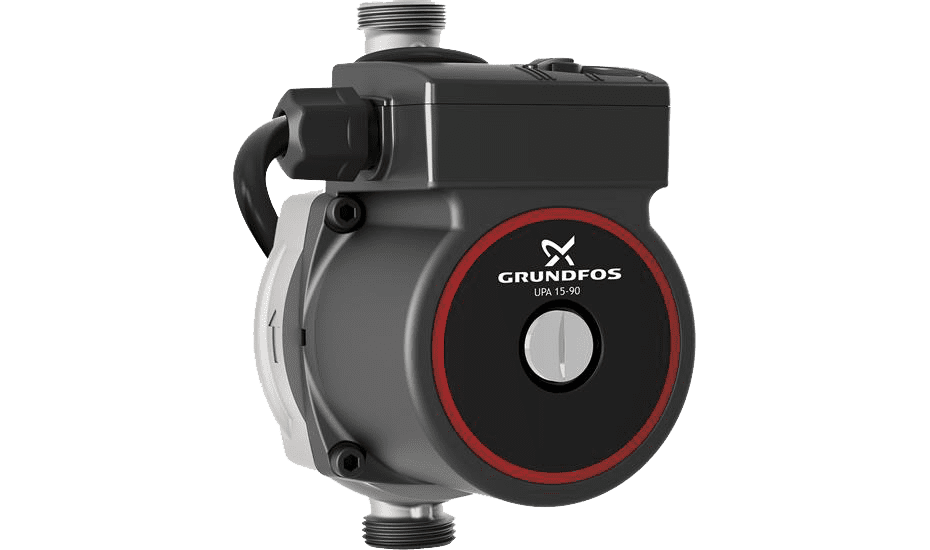

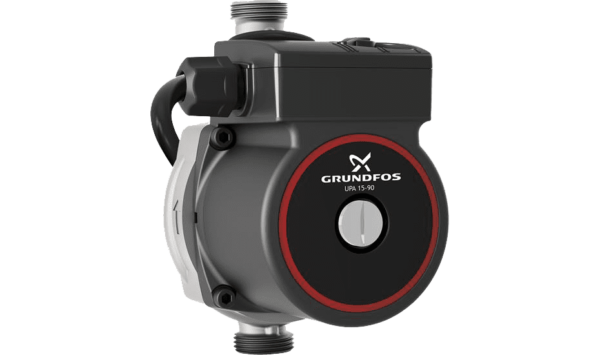

The Grundfos UPA N is an ultra quiet, compact domestic pressure booster pump designed to increase existing pressure to hot water outlets around the home.
Features
- Increased hot water pressure for a single outlet
- High quality stainless steel
- Low installation costs
- Ultra quiet operation
- Simple automatic operation
- Safe for use with drinking water
| Product name | UPA 15-90 N |
| Product No | 99539189 |
| EAN number | 5713830744383 |
| Price |
Technical
| Speed no | 1 |
| Head max | 90 dm |
| TF class | 95 |
Materials
| Pump housing | Stainless steel |
| Impeller | PP Composit |
Installation
| Max. ambient | 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | G |
| Pipe connection | 3/4 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 160 mm |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 2 .. 95 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
Electrical data
| Max. power input | 120 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 3 | 0.48 A |
| Capacitor size – run | 2.5 µF |
| Enclosure class (IEC 34-5) | X2D |
| Insulation class (IEC 85) | H |
| Built-in motor protection | NONE |
| Thermal protec | Impedance protected |
| Power plug | Australian plug |
Controls
| Flow switch Yes/No | Y |
Additional information
| Weight | 3.58 kg |
|---|
