SBA 3-45 A
$1,610.00 (Incl GST)
incl GST
Suitable for
- Domestic water pressure boosting
- Domestic rainwater harvesting
Grundfos SBA submersible multistage boosters are complete all-in-one units, designed to pump clean water for break tanks, shallow wells, and rainwater applications. They come with an integrated control unit eliminating the need for an external pump controller.
Description
Quotation
SBA 3-45 A

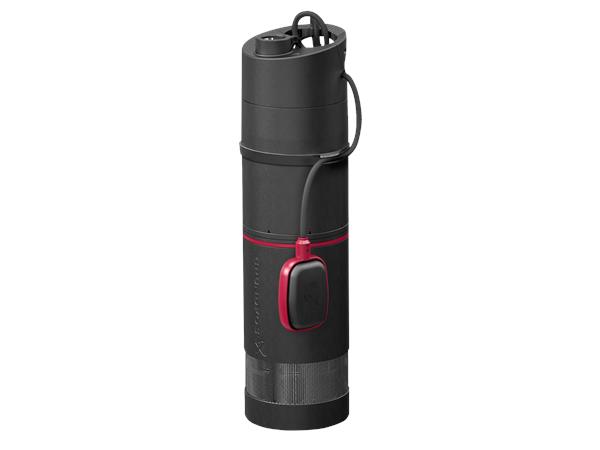

Grundfos SBA 3-45 A is an all-in-one submersible booster designed for pumping clean water for domestic use. The SBA is built on the proven SB platform and comes with an integrated control unit. This eliminates the need for an external pump controller in the house. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.The SBA 3-45 A is equipped with a 15 m supply cable, and the maximum installation depth is 10 m below the water level, with a liquid temperature ranging from 0 °C to 40 °C.The pump starts automatically when the pipe pressure falls below 2.2 bar.The SBA 3-45 A is ideal for operation in a well or ground tanks, as it easily prevents solid particles from entering the pump. The maximum particle size is 1 mm.
Grundfos SBA 3-45 A is an all-in-one submersible booster designed for pumping clean water for domestic use. The SBA is built on the proven SB platform and comes with an integrated control unit. This eliminates the need for an external pump controller in the house. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.The SBA 3-45 A is equipped with a 15 m supply cable, and the maximum installation depth is 10 m below the water level, with a liquid temperature ranging from 0 °C to 40 °C.The pump starts automatically when the pipe pressure falls below 2.2 bar.The SBA 3-45 A is ideal for operation in a well or ground tanks, as it easily prevents solid particles from entering the pump. The maximum particle size is 1 mm.
The pump features a float switch, which promises the user a convenient experience with automatic start/stop operation of the pump and provides dry running protection.
The single-phase model is effectively protected against any accidental overload by built-in thermal protection.
The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.
| LIQUID: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 40 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| TECHNICAL: | ||

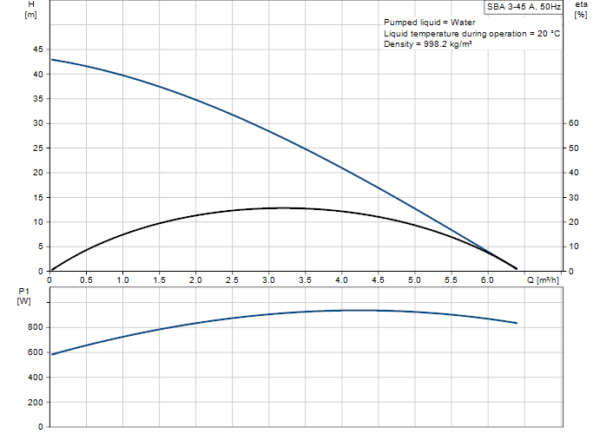

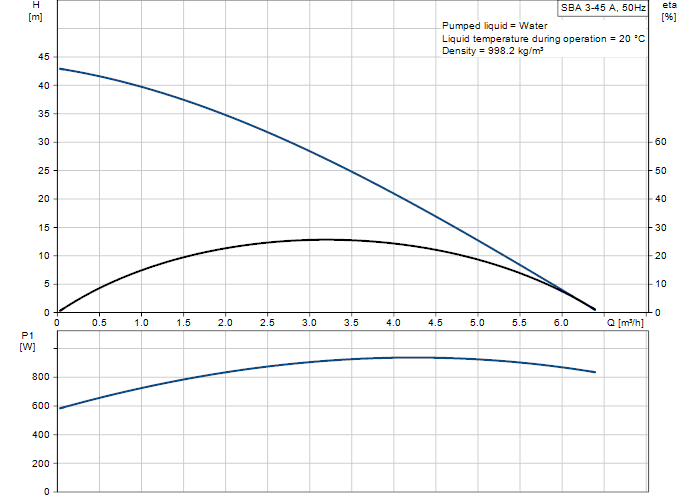

| Rated flow: | 2.83 m³/h | |
| Rated head: | 30.1 m | |
| Max. Particle: | 1 mm | |
| Approvals: | CE,WEEE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Return valve: | YES | |
| Adjustable start pressure: | N | |
| Start pressure: | 2.2 bar | |
| Rated driver speed: | 2800 rpm | |
| MATERIALS: | ||
| Pump housing: | Composite | |
| Impeller: | Composite | |
| INSTALLATION: | ||
| Range of ambient temperature: | -10 .. 50 °C | |
| Type of inlet connection: | STRAINER | |
| Pump outlet: | G 1″ | |
| Maximum installation depth: | 10 m | |
| ELECTRICAL DATA: | ||
| Power input P1: | 1.05 kW | |
| Rated power – P2: | 0.62 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 220-240 V | |
| Rated current: | 4.8 A | |
| Starting current: | 12 A | |
| Cos phi: | 0.94 | |
| Capacitor size – run: | 13 µF/450 V | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Built-in motor protection: | YES | |
| Length of cable: | 15 m | |
| Cable type: | H07RN-F 3G1 | |
| Type of cable plug: | AUS | |
| OTHERS: | ||
| Net weight: | 9.69 kg | |
| Gross weight: | 10.4 kg | |
| Shipping volume: | 0.022 m³ | |
Specifications
| Product name | SBA 3-45 A |
| Product No | 97896325 |
| EAN number | 5710626001903 |
Technical
| Rated flow | 2.83 m³/h |
| Rated head | 30.1 m |
| Maximum head | 45 m |
| Impellers | 4 |
| Max. Particle | 1 mm |
| Approvals | CE,WEEE |
| Curve tolerance | ISO9906:2012 3B |
| Return valve | YES |
| Adjustable start pressure | N |
| Start pressure | 2.2 bar |
| Rated driver speed | 2800 rpm |
Materials
| Pump housing | Composite |
| Impeller | Composite |
Installation
| Range of ambient temperature | -10 .. 50 °C |
| Type of inlet connection | STRAINER |
| Pump outlet | G 1″ |
| Maximum installation depth | 10 m |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| pH-value range | 4-9 |
Electrical data
| Power input P1 | 1.05 kW |
| Rated power – P2 | 0.62 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 4.8 A |
| Starting current | 12 A |
| Cos phi | 0.94 |
| Capacitor size – run | 13 µF/450 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | YES |
| Length of cable | 15 m |
| Cable type | H07RN-F 3G1 |
| Type of cable plug | AUS |
Controls
| Flow switch | yes |
Others
| Net weight | 9.69 kg |
| Gross weight | 10.4 kg |
| Shipping volume | 0.022 m³ |
Additional information
| Weight | 10.4 kg |
|---|
