Unilift AP50B.50.11.A1V

$2,694.45 (Incl GST)

incl GST

Product number: 96432507

Suitable for

  • Commercial wastewater
  • Domestic wastewater

Grundfos UNILIFT AP50B are stainless-steel submersible pumps designed for pumping waste water, including toilet discharge (where allowed), with particles up to 50 mm. The pump is suitable for installation on auto coupling, allowing for easy access to the pump for maintenance and other purposes.

unilift ap35b 50b pages

Description

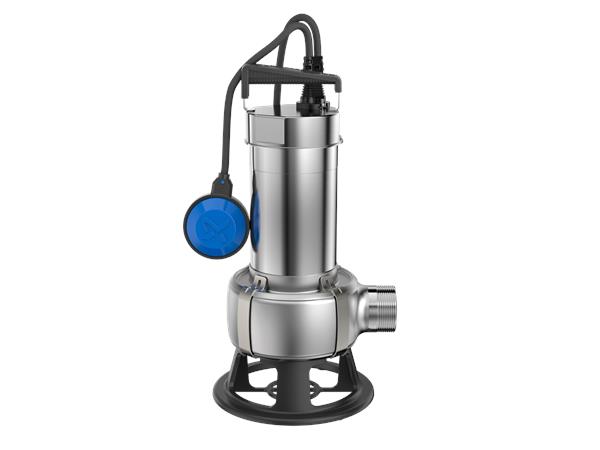

Submersible effluent pump

Vertical single-stage stainless steel submersible pump with integrated submersible 1-phase motor.

The pump is fitted with ring stand and carrying handle and is supplied with a 5 m mains cable and a level switch for automatic start and stop.

The impeller is a V impeller for 50 mm free passage suitable for pumping surface water, groundwater, wastewater and similar.

The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.

The motor is insulation class F with thermal overload protection and has long-life deep-groove greased-for-life ball bearings.

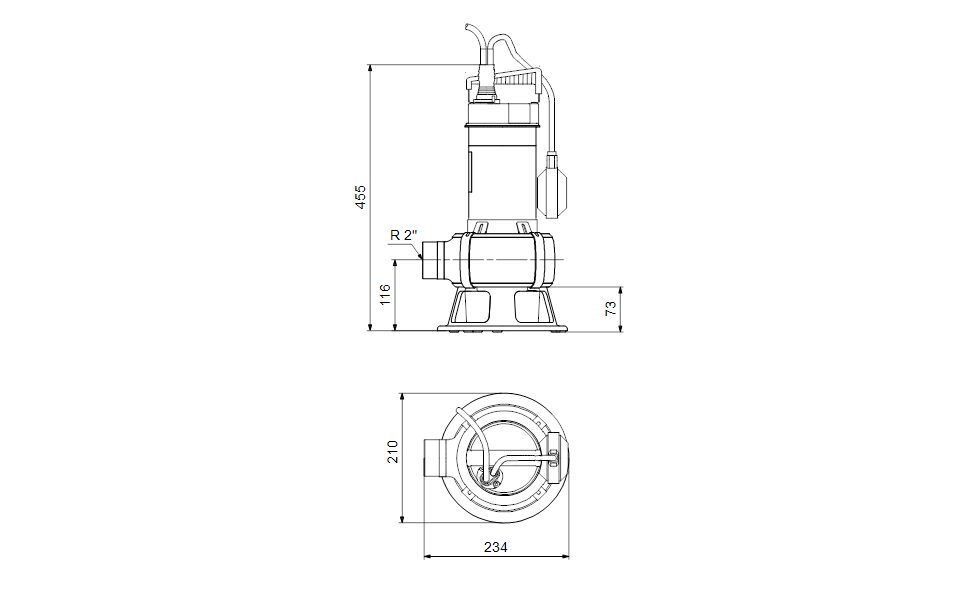

The pump has R 2″ discharge port and is ready for installation either free-standing or on an auto-coupling system.

LIQUID:
Maximum liquid temperature: 40 °C
Density: 998.2 kg/m³
TECHNICAL:
Type of impeller: V
Maximum particle size: 50 mm
MATERIALS:
Pump housing: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impeller: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
INSTALLATION:
Pump outlet: R 2″
Maximum installation depth: 2 m
Auto-coupling: Y
ELECTRICAL DATA:
Motor type 1-phase: PSC
Power input – P1: 1.75 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Rated current: 8 A
Cos phi – power factor: 0.95
Rated speed: 2760 rpm
Capacitor size – run: 20 µF/400 V
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Length of cable: 5 m
Type of cable plug: SCHUKO
OTHERS:
Net weight: 11 kg
Gross weight: 12.5 kg
Danish VVS No.: 391272332
Swedish RSK No.: 5885938
Finnish LVI No.: 4822590
Norwegian NRF no.: 9045692



Additional information

Weight 12.5 kg
