UNILIFT KP A1 Range

$775.10$1,127.00 (Incl GST)

incl GST

Suitable for

  • Commercial wastewater
  • Domestic wastewater
  • Industrial wastewater treatment & reuse

Grundfos UNILIFT KP are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 10 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings.

Refer to attached document below for more information and specifications.

KP Pages

Description

Part Numbers:

Unilift KP 150 A 1: 011K4700

Unilift KP 250 A 1: 012K4700

Unilift KP 350 A 1: 013N4700

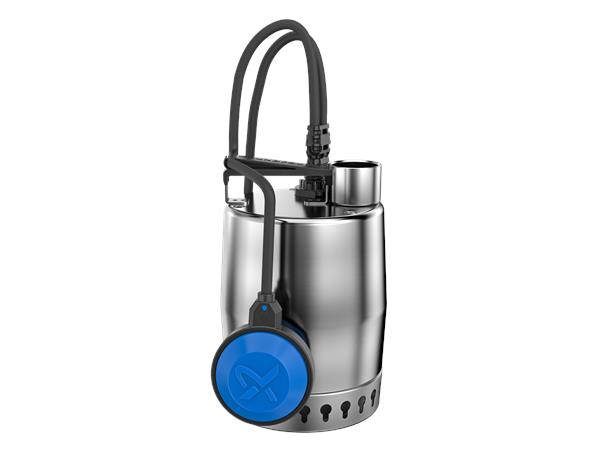

Submersible Drainage Pump

Vertical single-stage stainless steel submersible pump with vertical discharge port and integrated submersible 1-phase canned motor in insulation class F with thermal overload protection.

The pump is fitted with suction strainer and a carrying handle and is supplied with a 5 m mains cable and float switch for automatic start and stop.

The impeller is a semi-open impeller for 10 mm free passage suitable for pumping groundwater, surface water, rain water and similar liquids.

The pump has a double shaft seal consisting of two lip seals with grease in-between.

The pump has an outer casing ensuring continuous cooling of the motor by the pumped liquid. The rotor shaft operates in two maintenance-free carbon bearings cooled by the pumped liquid.

The motor is filled with a non-toxic motor liquid.



LIQUID:
Liquid temperature range: 0 .. 50 °C
Density: 998.2 kg/m³
TECHNICAL:
Maximum particle size: 10 mm
MATERIALS:
Pump housing: Stainless steel
DIN W.-Nr. 1.4301



Additional information

Weight N/A
Models

KP 150 A 1, KP 250 A 1, KP 350 A 1
